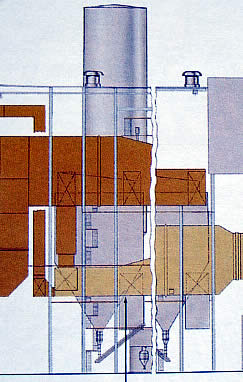

Introduction to a Real Boiler System - continued. Boiler: Section 3 This section shows the dry scrubber provided for the system. The purpose of the scrubber is to remove pollutants from the flue gas. Treated flue gas is routed toward right.



If the figure provided here does not make sense, go back to the block diagram of this system. Much of the technical matter provided here has not been discussed with you. It will be discussed in later sections. This section is designed to provide you with a brief overview.

Graphic Source: Steam - Its Generation and Use. Babcock and Wilcox
