Introduction to a Real Boiler System - continued.

Section 1 - continued.

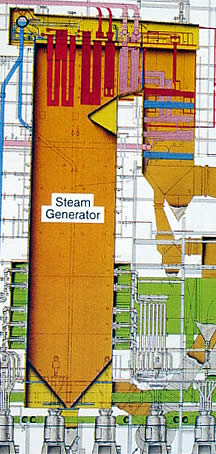

d. Notice grayish piping inside the green regions surrounding the lower part of the furnace. This piping is used to transport the pulverized coal from the pulverizers to the furnace burners. The green area surrounding the pulverized coal burners represents the combustion air ducting, designed to accept the combustion air from the FD Fan and introduce it into the furnace.

If the figure provided here does not make sense, go back to the block diagram of this system. Much of the technical matter provided here has not been discussed with you. It will be discussed in later sections. This section is designed to provide you with a brief overview.
