Introduction to a Real Boiler System - continued.

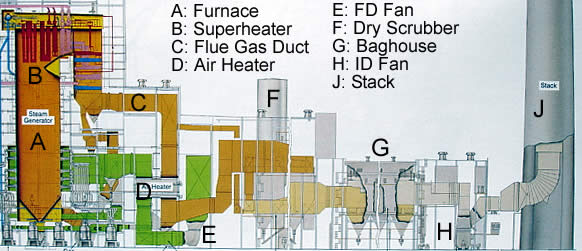

You should also make a note of the fact that what is shown here does not represent a complete power plant. A complete power plant will have many other large systems as well. Some of the systems, not shown here, are listed here:
a. Steam turbines and generators
b. Water treatment systems
c. Control rooms
d. Electric switchgear and substations
