Automatic Central System

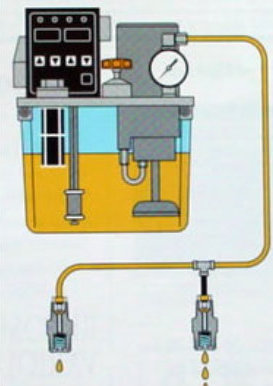

This figure illustrates a system which is automatically activated on a cyclical basis. Each time the system is activated, a batch of lubricant is delivered to the receiving-end points.

Graphic Source: Trico Corp.
